二通閥球 > B60-VP
| 品名： | B60-VP |
|---|---|
| 材質： | A351 CF8M(18Cr-8Ni-2Mo) |
| 鑄造： | 離心鑄造 |
| 熱處理： | 固溶化 |
| 精度： | 真圓度≦0.03mm |
| 尺寸： | 1/2"~2 1/2" |
| Service Application： | Water、Oil、Gas、Thermal Fluid、Chemicals、and others |
| Certifications： | BVQI NSF-ISR ISO 9001:2008 |

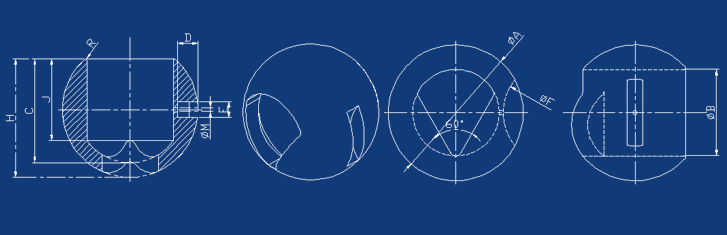

| φA | φB | C | D | E | φF | H | J | φM | R | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 25.5 | 12.7 | 19.53 | 4 | 5 | 26 | 23.41 | 15.36 | 3 | 0.5 |
| 1/2" | 25.5 | 15 | 19.53 | 4 | 5 | 26 | 22.4 | 15.36 | 3 | 0.5 |
| 1/2" | 27.7 | 16 | 21.21 | 4 | 6 | 25.4 | 24.55 | 16.39 | 3 | 0.5 |
| 3/4" | 34.4 | 20 | 26.35 | 6 | 5 | 26 | 30.45 | 20.72 | 3 | 0.6 |
| 3/4" | 41.25 | 20 | 31.59 | 6.5 | 8 | 50 | 36.225 | 24.85 | 3 | 0.5 |
| 1" | 44 | 25 | 33.7 | 6.5 | 8 | 50 | 39.2 | 26.5 | 3 | 0.6 |
| 1 1/4" | 50.8 | 32 | 39.91 | 6.5 | 8 | 50 | 44.3 | 30.6 | 3 | 0.5 |
| 1 1/4" | 54 | 32 | 41.36 | 7 | 8 | 50 | 47.9 | 32.53 | 3 | 0.6 |
| 1 1/2" | 62 | 38.1 | 47.48 | 9.5 | 9.5 | 75 | 69.9 | 37.36 | 5 | 0.8 |
| 2" | 80 | 50.8 | 61.27 | 10 | 9.5 | 75 | 69.9 | 48.19 | 3 | 0.5 |
| 2 1/2" | 102 | 65 | 78.12 | 10.75 | 12 | 79.78 | 89.12 | 64.44 | 3 | 1 |
*產品規格尺寸樣式可依客戶需求訂製
